Delta TAP-TR01 – Bộ Lập Trình PLC
Liên hệ
Mã sản phẩm: TAP-TR01
Loại : PLC – Accessories
Thông tin sản phẩm : Terminal resistance for CANopen communication (RJ45)
Mô tả

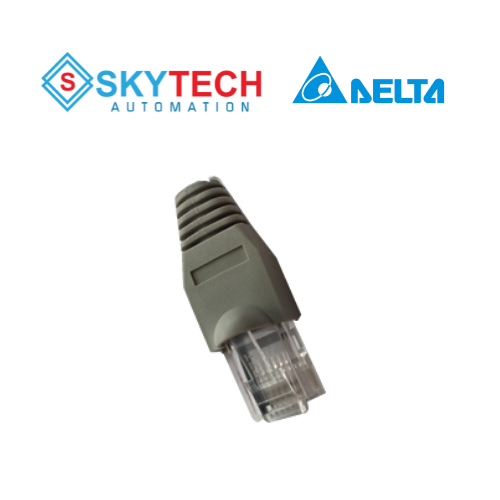

Hình ảnh thực tế PLC Accessories TAP-TR01
Bảng chi tiết chọn mã PLC Accessories
| Type | Model Name | Description | Specification | Applicable Modules | |
| Length | Connector/Terminal Block | ||||
| PLC Programming and Serial Communication Cable | UC-PRG015-01A | Communication cable for PLC (mini USB) to PC | 1.5m | PC (USB mini USB) PLC | DVP-SE/DVP-SX2/AH500 |
| UC-PRG015-02A | Communication cable for TP (USB B type) to PC | 1.5m | PC (USB USB B type) TP | TP70P/TP04P / DOP | |
| UC-PRG020-12A | Communication cable for PLC (DB9 female / 8-pin mini-DIN male) to PC | 2m | PC (DB9 female 8-pin mini-DIN male) PLC | DVP/TP RS-232 | |
| UC-PRG030-01A | Communication cable for PLC (mini USB) to PC | 3m | PC (USB mini USB) PLC | DVP-SE/SX2
AH500 |
|
| UC-PRG030-02A | Communication cable for TP (USB B type) to PC | 3m | PC (USB USB B type) TP | TP70P / TP04P / DOP | |
| UC-PRG030-10A | Communication cable for
PLC / HMI / TP (DB9 female) to PC |
3m | PC (DB9 female DB9 female) PLC/HMI/TP | PLC/HMI/TP (DB9 female) | |
| UC-PRG030-20A | Communication cable for
PLC / HMI (RJ45) to PC |
3m | PC (RJ45 RJ45) PLC/HMI | DVP-SE
DVPEN02-L AHCPU5□□-EN AH10EN-5A |
|
| UC-MS010-02A | Communication cable for PLC (8-pin mini-DIN male) to PC | 1m | PC (DB9 female 8-pin mini-DIN male) PLC | DVP PLC RS-232 | |
| UC-MS020-01A | Communication cable for PLC (8-pin mini-DIN male) to PC | 2m | PC (DB9 female 8-pin mini-DIN male) PLC | ||
| UC-MS020-06A | Communication cable for PLC (8-pin mini-DIN male) to HMI | 2m | HMI (DB9male 8-pin mini-DIN male) PLC | ||
| UC-MS030-01A | Communication cable for PLC (8-pin mini-DIN male) to PC | 3m | PC (DB9 female 8-pin mini-DIN male) PLC | ||
| UC-MS030-06A | Communication cable for PLC (8-pin mini-DIN male) to HMI | 3m | HMI (DB9male 8-pin mini-DIN male) PLC | ||
| I/O External Terminal Module | UC-ET010-24A | I/O extension cable for connecting external terminal modules | 1m | PLC (MIL IDC40 IDC40) external terminal modules | DVP32SM11N ↔UB-10- ID32A DVP32SN11TN↔UB-10-OT32A |
| UC-ET010-24B | I/O extension cable for connecting external terminal modules | 1m | PLC (MIL IDC40 IDC40) external terminal modules (shielded wire) | DVP32SM11N↔UB-10-ID32A DVP32SN11TN
↔UB-10-OT32A |
|
| UC-ET010-24C | I/O extension cable for connecting external terminal modules | 1m | PLC (MIL IDC40 IDC20x2) external terminal modules | DVP32SN11TN↔UB-10-OR16A | |
| UC-ET010-24D | I/O extension cable for connecting external terminal modules | 1m | PLC (MIL IDC40 IDC20x2) external terminal modules
(shielded wire) |
DVP32SN11TN↔UB-10-OR16A | |
| UC-ET020-24B | I/O extension cable for connecting external terminal modules | 2m | PLC (MIL IDC40 IDC40) external terminal modules
(shielded wire) |
DVP32SM11N↔UB-10-ID32A DVP32SN11TN
↔UB-10-OT32A |
|
| UC-ET020-24D | I/O extension cable for connecting external terminal modules | 2m | PLC (MIL IDC40 IDC20x2) external terminal modules (shielded wire) | DVP32SN11TN↔UB-10-OR16A | |
| UC-ET030-24B | I/O extension cable for connecting external terminal modules | 3m | PLC (MIL IDC40 IDC40) external terminal modules (shielded wire) | DVP32SM11N↔UB-10-ID32A DVP32SN11TN↔UB-10-OT32A | |
| UC-ET030-24D | I/O extension cable for connecting external terminal modules | 3m | PLC (MIL IDC40 to IDC20x2) external terminal modules (shielded wire) | DVP32SN11TN↔UB-10-OR16A | |
| Motion Control Cable/ Industrial Communication Cable | UC-CMC003-01A | CANopen communication cable | 0.3m | RJ45 | DVPCOPM-SL
DVP10MC11T DVP15MC11T DVP15MC11T-06 DVPCP02-H2 TAP-CN03 |
| UC-CMC005-01A | 0.5m | ||||
| UC-CMC010-01A | 1m | ||||
| UC-CMC015-01A | 1.5m | ||||
| UC-CMC020-01A | 2m | ||||
| UC-CMC030-01A | 3m | ||||
| UC-CMC050-01A | 5m | ||||
| UC-CMC100-01A | 10m | ||||
| UC-CMC200-01A | 20m | ||||
| UC-EMC003-02A | EtherCAT communication cable (ETG approval) | 0.3m | RJ45 | DVP50MC11T
DVP50MC11T-06 |
|
| UC-EMC005-02A | 0.5m | ||||
| UC-EMC010-02A | 1m | ||||
| UC-EMC020-02A | 2m | ||||
| UC-EMC050-02A | 5m | ||||
| UC-EMC100-02A | 10m | ||||
| UC-EMC200-02A | 20m | ||||
| UC-EMC003-02B | EtherCAT communication cable (ETG approval) | 0.3m | RJ45 | ||
| UC-EMC005-02B | 0.5m | ||||
| UC-EMC010-02B | 1m | ||||
| UC-EMC020-02B | 2m | ||||
| UC-EMC030-02B | 3m | ||||
| UC-EMC050-02B | 5m | ||||
| UC-EMC100-02B | 10m | ||||
| Industrial Communication Cable | UC-DN01Z-01A | DeviceNet/CANopen
communication cable (Trunk cable – thick) |
On customer’s demand
(up to 305 m) |
– | DeviceNet/CANopen related models |
| UC-DN01Z-02A | DeviceNet/CANopen
communication cable (Drop cable – thin) |
– | |||
| External Terminal Module | UB-10-OR16A | external terminal module for DVP32SN output module | – | 16-point relay output, 20-pin MIL | DVP32SN11TN |
| UB-10-OT32A | external terminal module for DVP32SN output module | – | 32-point transistor output, 40-pin MIL | DVP32SN11TN | |
| UB-10-ID32A | external terminal module for DVP32SM digital input module | – | 32-point input, MIL | DVP32SM11TN | |
| Connector | UN-03EN-04A | RJ45 connector | – | – | – |
| Peripheral Accessory | Data backup memory card (DVP-EH3 only) | DVP-512FM | |||
| Data backup memory card (DVP-ES2 only) | DVP-E64FM | ||||
| Data backup memory card (64k words) | DVPPCC01 | ||||
| Data backup memory card (TP only) | TP-PCC01 | ||||
| Communication cable for PC (9-pin & 25-pin D-Sub) and PLC, 1.5 m | DVPACAB215 | ||||
| Communication cable for PC (9-pin & 25-pin D-Sub) and PLC, 3m | DVPACAB230 | ||||
| 4 types of RS-485 connectors | ADP485-01 | ||||
| Connection cable for ADP485-01 and ASDA-A series servo | ADPCAB03A | ||||
| Connection cable for ADP485-01 and ASDA-B series servo | ADPCAB03B | ||||
| I/O extension cable for DVP-ES/EX Series, 0.3m | DVPACAB403 | ||||
| Extension cable for DVP-EH series PLC and extension module, 0.7m | DVPACAB4A07 | ||||
| DeviceNet/CANopen distribution box, 1 for 2 | TAP-CN01 | ||||
| DeviceNet/CANopen distribution box, 2 for 3 | TAP-CN02 | ||||
| DeviceNet/CANopen distribution box, 2 for 3 RJ45 | TAP-CN03 | ||||
| 3.6V lithium battery (unchargeable) for DVP-EH/SX Series PLC | DVPABT01 | ||||
| Terminal resistance for CANopen communication (RJ45) | TAP-TR01 | ||||
| Programming cable for TP Series | UCPRG030-10A | ||||
