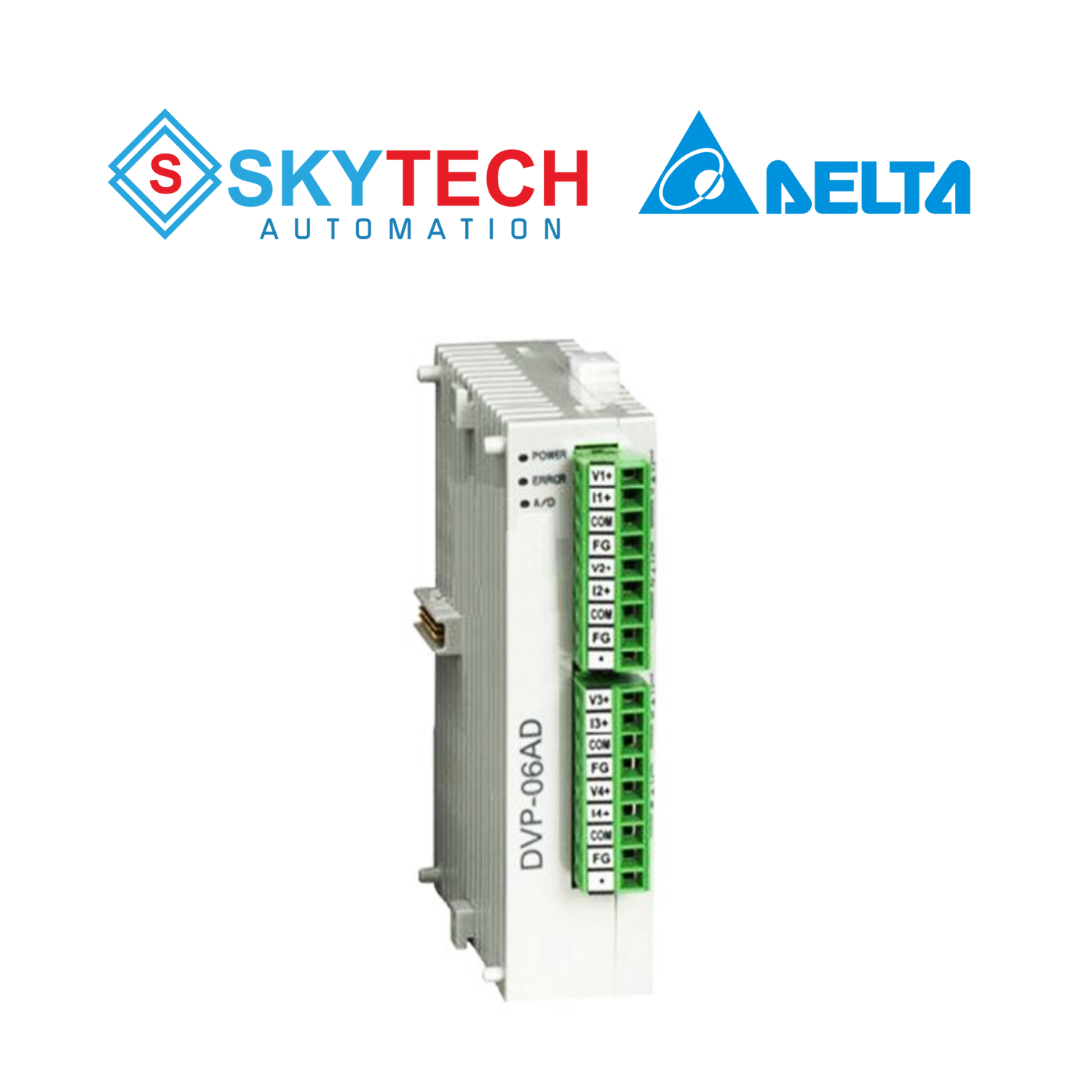

Delta DVP06AD-S – Bộ Lập Trình PLC

• Module mở rộng 6 đầu ra relay

• Module mở rộng 8 đầu ra relay

• Module mở rộng 8 đầu ra transistor(NPN)

• Module mở rộng 16 đầu ra transistor(NPN)

• Module mở rộng 4 đầu vào số, 4 đầu ra relay

• Module mở rộng 4 đầu vào số, 4 đầu ra transistor(NPN)

• Module mở rộng 8 đầu vào số

• Module mở rộng 8 đầu vào số

• Module mở rộng 8 đầu ra transistor (PNP)

• Module mở rộng 8 đầu vào digital switch

• Module mở rộng 8 đầu vào số, 8 đầu ra relay

• Module mở rộng 4 đầu vào số, 4 đầu ra transistor(PNP)

• Module mở rộng 8 đầu vào số, 8 đầu ra transistor(NPN)

• Module mở rộng 8 đầu vào số, 8 đầu ra transistor (PNP)

• Module mở rộng 16 đầu ra transistor (PNP)

• Module mở rộng 16 đầu vào số

• Module mở rộng 32 đầu ra transistor MIL

• Module mở rộng 32 đầu vào MIL

• Module mở rộng 04 Analog Input (-10 V ~ +10V / -20mA~ +20 mA )
• Input resolution: 14-bit
• Built-in RS-485 interface
• Differential input

• Module mở rộng 4 Analog output (0 ~ +10 V) /(0 mA~ +20 mA)
• Output resolution: 12-bit
• Built-in RS-485 interface

• Module mở rộng 4 Analog Input + 2 Analog Output

• 4 Analog input (-10 V ~ +10 V) / (-20 mA~ +20mA)

• 2 analog output (0 V ~ +10 V) / (0 mA~ +20 mA)

• Input / output resolution: 12-bit
• Built-in RS-485 interface
• Differential input

• Module mở rộng 4 Analog output (-10 V ~ +10 V) /

(-20mA~ +20mA)

• Input resolution: 14-bit
• Built-in RS-485 interface
• Single-ended input

• Module mở rộng 4 Analog output (0 V ~ +10 V) /

(0 mA~ +20 mA)

• Output resolution: 12-bit
• Built-in RS-485 interface

• Module mở rộng 4 Analog output (0 V ~ +10 V) /

(0 mA~ +20 mA)

• Output resolution: 12-bit
• Built-in RS-485 interface

• Module mở rộng 6 Analog output (-10 V ~ +10 V) /

(-20mA~ +20mA)

• Input resolution: 14-bit
• Built-in RS-485 interface

• Module mở rộng 4 Analog input +2 Analog output
• 4 analog  input :(-10 V ~ +10 V) / (-20mA~ +20mA)
• 2 Analog output: (0 V ~ +10 V) / (0 mA~ +20 mA)
• Input / output resolution: 12-bit
• Built-in RS-485 interface
• Single-ended input

• 6 points of platinum RTD (Pt100, Pt1000, Ni100, Ni1000) sensor input
• Resolution: 0.1 °C

• 4 points of platinum RTD (Pt100, Pt1000, Ni100, Ni1000) sensor input*1
• (Version 4.06 and above supports Pt1000, Ni100, Ni1000)
• Resolution: 0.1 °C
• Built-in RS-485 interface

• 4 points of thermocouple (J, K, R, S, T type) sensor input*1
• Resolution: 0.1 °C
• Built-in RS-485 interface

• 8 points of thermistor (NTC) sensor input
• Resolution: 0.1 °C
• Built-in RS-485 interface

• 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA;
• Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII;
• RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000
• Resolution: analog 16-bit; Sensor: 0.1 °C

• 4 points of NPN transistor output: 24VDC/ 300mA

• Output point: built-in PID program control / manual control

• 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA; Thermocouple: J, K, R, S, T,
• E, N, B, C, L, U, TXK, PLII; RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000,
• LG-Ni1000
• Resolution: analog 16-bit; Sensor: 0.1 °C

• 4 points of relay output: 24VDC/3A

• Output point: built-in PID program control / manual control

• 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA; Thermocouple: J, K, R, S, T,
• E, N, B, C, L, U, TXK, PLII; RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000,
• LG-Ni1000
• Resolution: analog 16-bit; Sensor: 0.1 °C

• 2 points of analog output: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA

• Output point: built-in PID program control / manual control

• Servo position control module (single axis, 200kHz)

• DeviceNet slave communication module

• PROFIBUS DP slave communication module

• RS-485 remote I/O module, connectable to DVP-S series I/O modules

• Ethernet remote I/O module, connectable to DVP-S series I/O modules

• DeviceNet remote I/O module, connectable to DVP-S series I/O modules

• PROFIBUS remote I/O module, connectable to DVP-S series I/O modules

• CANopen remote I/O module, connectable to DVP-S series I/O modules

• EtherCAT remote I/O module, connectable to DVP-S series I/O modules

• 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA;
• Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII;
• RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000
• Resolution: analog 16-bit; Sensor: 0.1 °C

• 4 points of NPN transistor output: 24VDC/ 300mA

• Output point: built-in PID program control / manual control

• 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA;

Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII;

RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000

• Resolution: analog 16-bit; Sensor: 0.1 °C
• 4 points of relay output: 24VAC/3A
• Output point: built-in PID program control / manual control

• 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA;
• Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII;
• RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000
• Resolution: analog 16-bit; Sensor: 0.1 °C
• 2 points of analog output: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA
• Output point: built-in PID program control / manual control

• Ethernet communication module, 10 / 100 Mbps

• DeviceNet master communication module, 500 Kbps

• CANopen master communication module, 1 Mbps

• PROFIBUS DP slave communication module , 12 Mbps

• RS-485 / RS-422, serial communication module, 460 Kbps

• BACnet MS /TP Slave communication module, 460 Kbps

• 4 groups of analog input *1
• Signal range: 1 ~ 5 V, 0 ~ 5 V, -5 ~ 5 V, 0 ~ 10 V, -10 ~ 10 V, 4 ~ 20mA, 0 ~ 20 mA,-20 ~ 20 mA
• Resolution: 16-bit
• Single channel On / Off setup enhances entire conversion efficiency
• Conversion time: 250 μs / point
• Off-line alarm (1 ~ 5 V, 4 ~ 20 mA)

• 4 groups of analog output *1
• Signal range: 0 ~ 10 V, -10 ~ 10V, 4 ~ 20 mA, 0 ~ 20 mA
• Resolution: 16-bit
• Offers single channel On / Off setup
• Conversion time: 250 μs / point

• 1 set of load cell module*1
• Resolution: 24-bit for hardware(ADC),
• 32-bit for data output
• Connectable to 4-wire / 6-wire load cell
• sensor
• Measurable range: 0 ~ 80 mV / V

• 1 set of load cell module*1
• Resolution: 24-bit for hardware(ADC),
• 32-bit for data output
• Connectable to 4-wire / 6-wire load cell sensor
• Measurable range: 0 ~ 80 mV / V
• Built-in I/O control: 2DI / 4DO / 1AO

• 2 sets of load cell module*1
• Resolution: 24-bit for hardware(ADC),
• 32-bit for data output
• Connectable to 4-wire / 6-wire load
• cell sensor
• Measurable range: 0 ~ 80 mV / V

• Supports 2 channels of load cell signal input*1
• Resolution: 20-bit for hardware(ADC), 16-bit for data output
• Connectable to 4-wire / 6-wire load cell sensor
• Measurable range: 0 ~ 6 mV / V

• Supports 1 channel of load cell signal input*1
• Resolution: 20-bit for hardware(ADC), 32-bit for data output
• Connectable to 4-wire / 6-wire load cell sensor
• Measurable range: 0 ~ 6 mV / V
